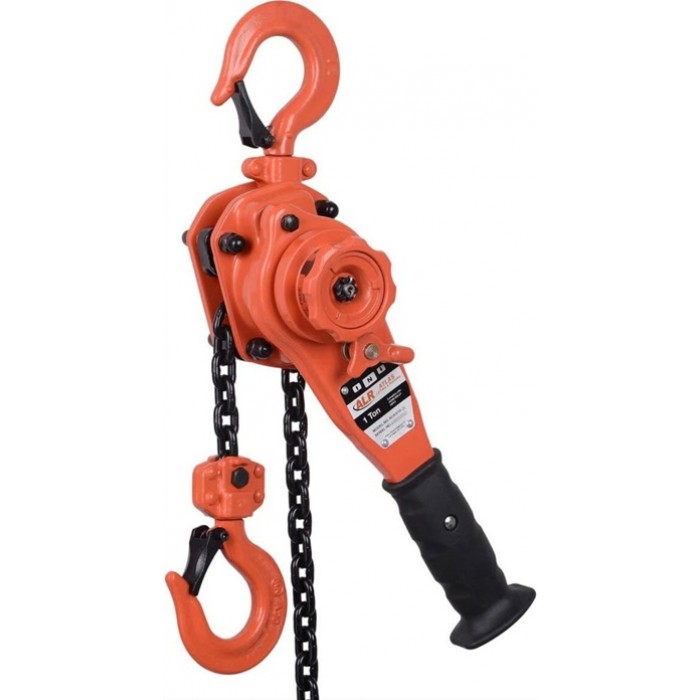

Atlas Lifting and Rigging ALH 1 Ton Lever Chain Hoist 20 Ft. Chain with Overload Protection
Atlas Lifting & Rigging (ALR) has designed these hoists to exceed it's rating by 150%. The safety features are: At the base and tip of each hook are permanent measuring points to check the hooks throat opening for signs of "stretching", an indication that the hoist has been overloaded and the hook should be replaced. The zinc coating on crucial parts gives it the ability to withstand harsh conditions. Quick hoist positioning allows our lever hoist to adjust without accidentally freewheeling under load. Our hoist does not have to be under load to adjust with the ratchet. Welded structural stay bolts increases strength and safety. High strength alloy side plates gives it the strongest structure in the industry. Sintered brake system gives our brake pads extraordinary strength, it won't crack, shatter or absorb moisture. Overload protection will protect the user and the hoist from damage.
Capacity (Ton)
1 Ton
Capacity
2200 lbs
Maximum Lift Height (ft)
20
A-Frame Design
No
Brand Name
Atlas Lifting and Rigging
Assembled Depth (in)
4
Assembled Weight (lbs)
22.0
Assembled Width (in)
5
ASTM B30.21 Compliant
Yes
Color
Orange
Country of Origin
China
Height (in)
12
MFG Part # (OEM)
ALH-010-20-OP
Material
Steel
Maximum Load (lbs)
2200
Overall Length (in)
240
Package Contents
Hoist
Package Depth
6.29952
Package Height
4.9215
Package Weight
22.0
Product Condition
New
Restrictions
CA Prop 65
Towable
No
UPC
810044341263
Warranty Type
3 Years Limited
Weight Capacity (lbs)
2200
